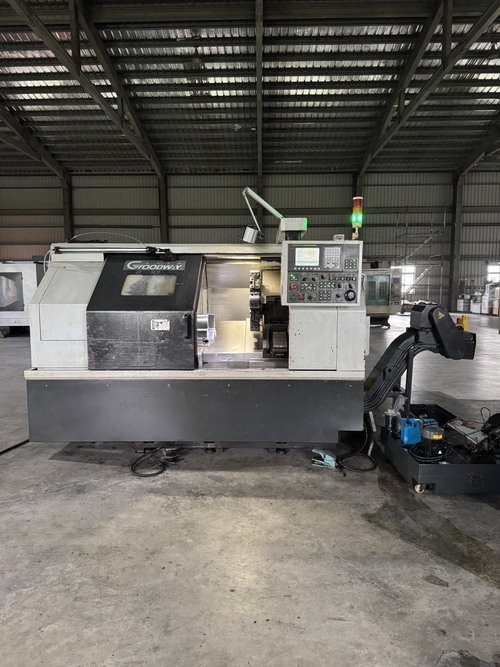

GOODWAY Horizontal Lathe GA3300

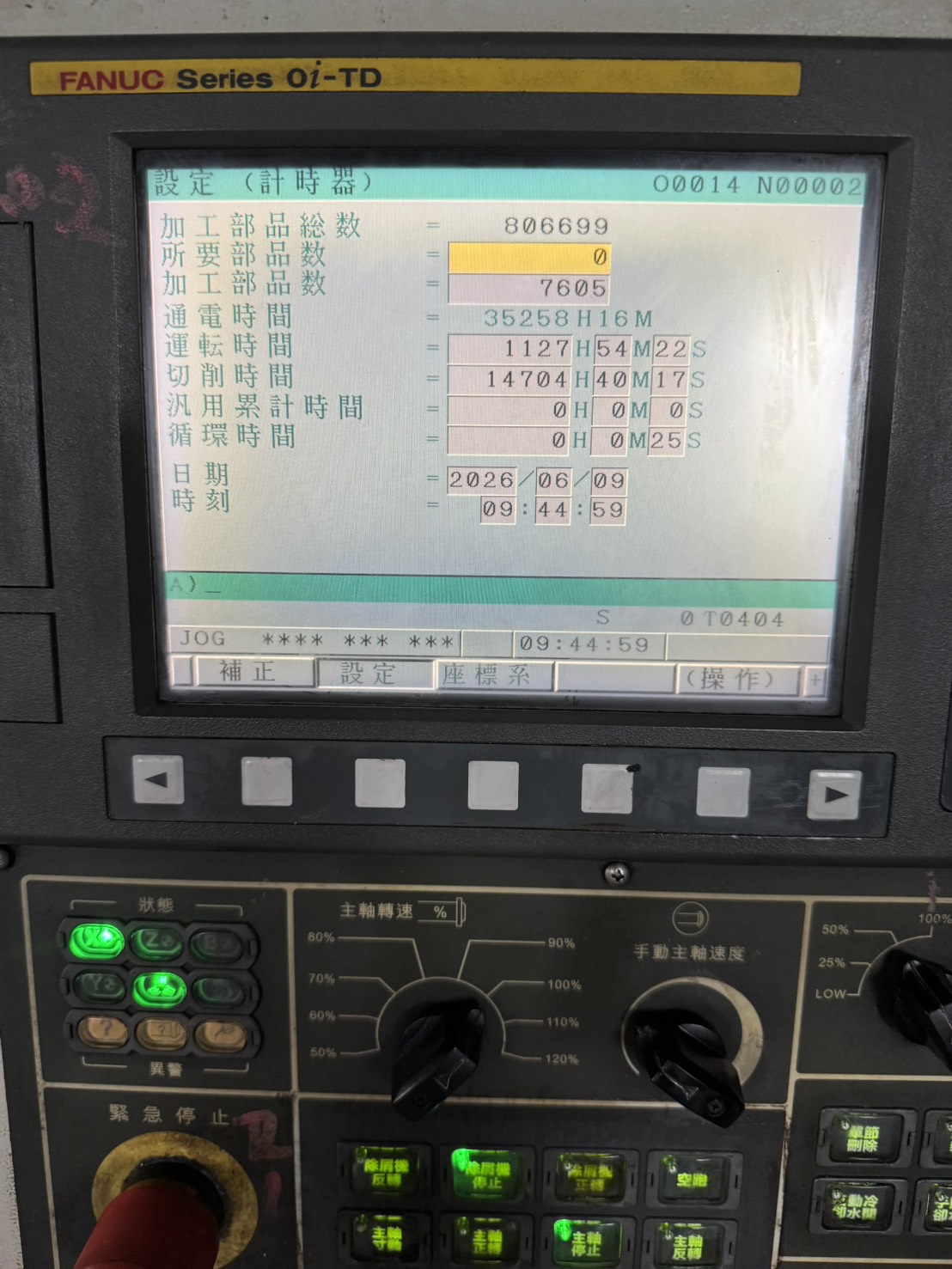

Year of production：2013Controller：FANUC-0iTD
Specifications：

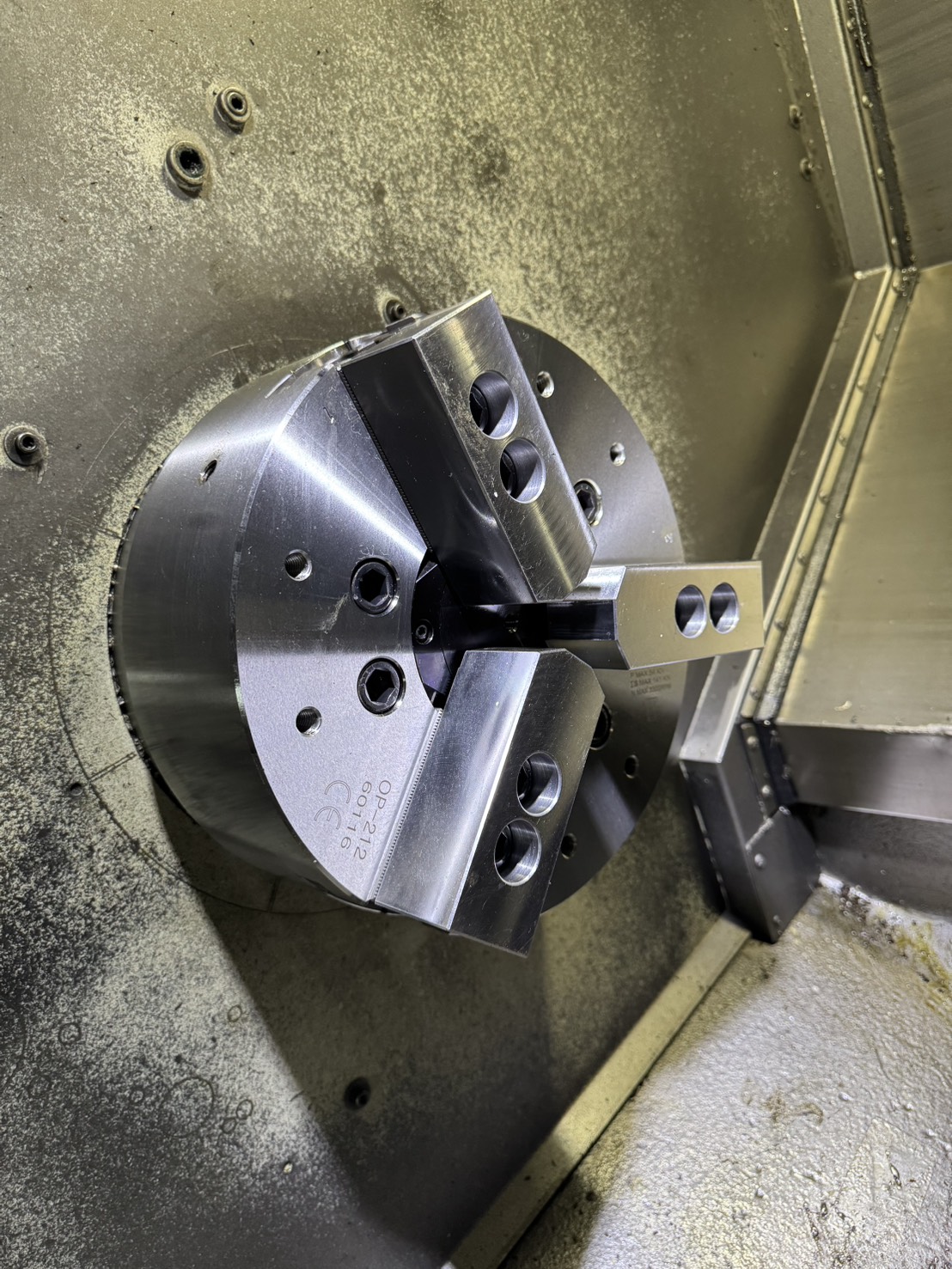

Chuck Size：12"x3爪中空油壓夾頭
X / Z Travel：260mm / 630mm

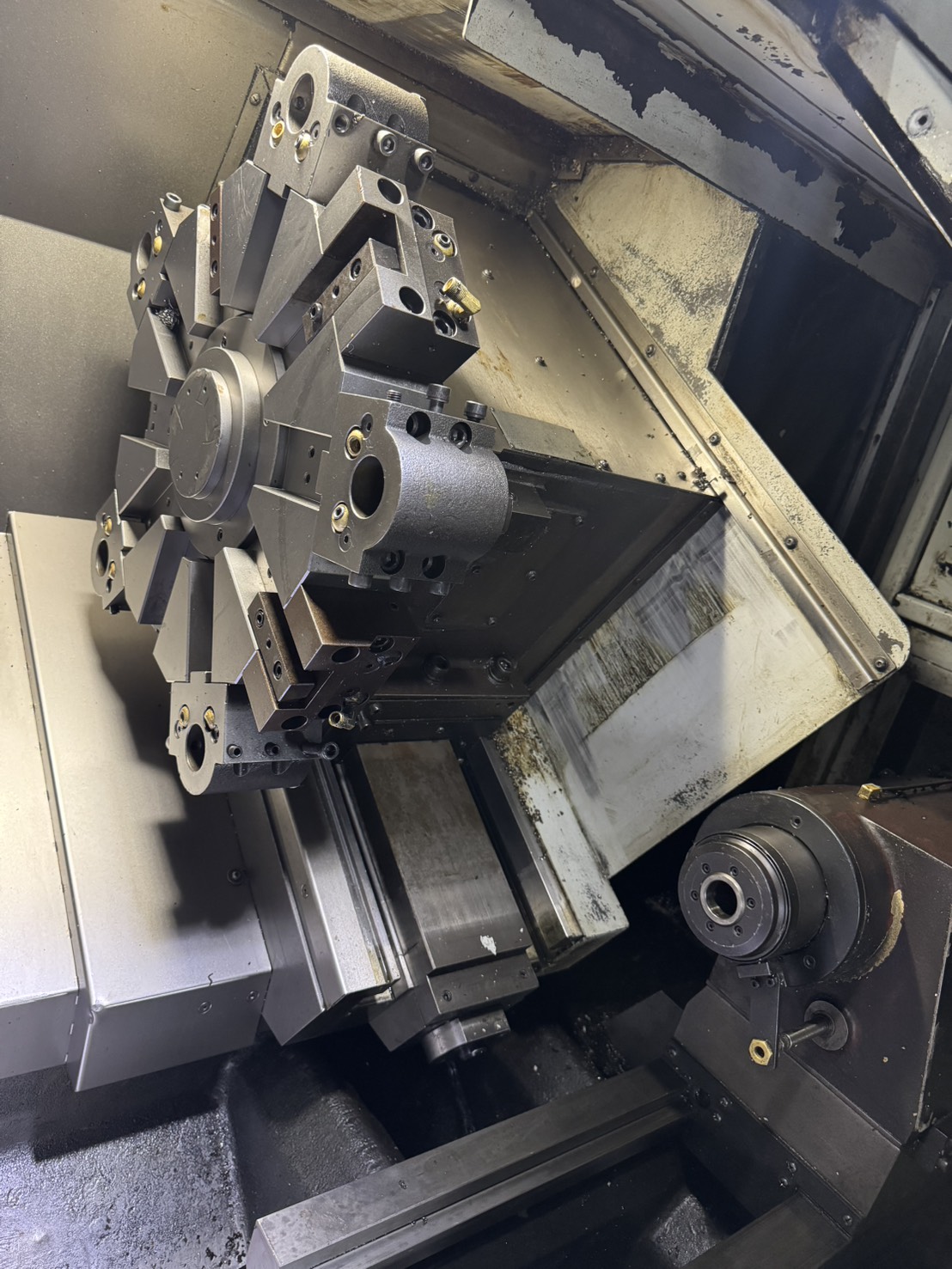

Tool Capacity：10支刀 (伺服刀塔)
Max. Swing Dia.：600mm
Max. Turning Dia.：∅450mm
Max. Turning Length：625mm
Bar Capacity：∅90mm
Tailstock Body Travel：450mm
Tailstock Quill Taper：MT#4(活動頂針)
Tailstock Quill Dia. / Stroke：∅110mm / 150mm
Accessories：
(1) 3,000 rpm Spindle
(2) Hydraulic Tailstock
(3) Programmable Tailstock Quill
(4) Disc-Type Oil Skimmer
(5) Chip Conveyor
(6) Work Light
(Specifications are subject to the actual machine configuration.)
