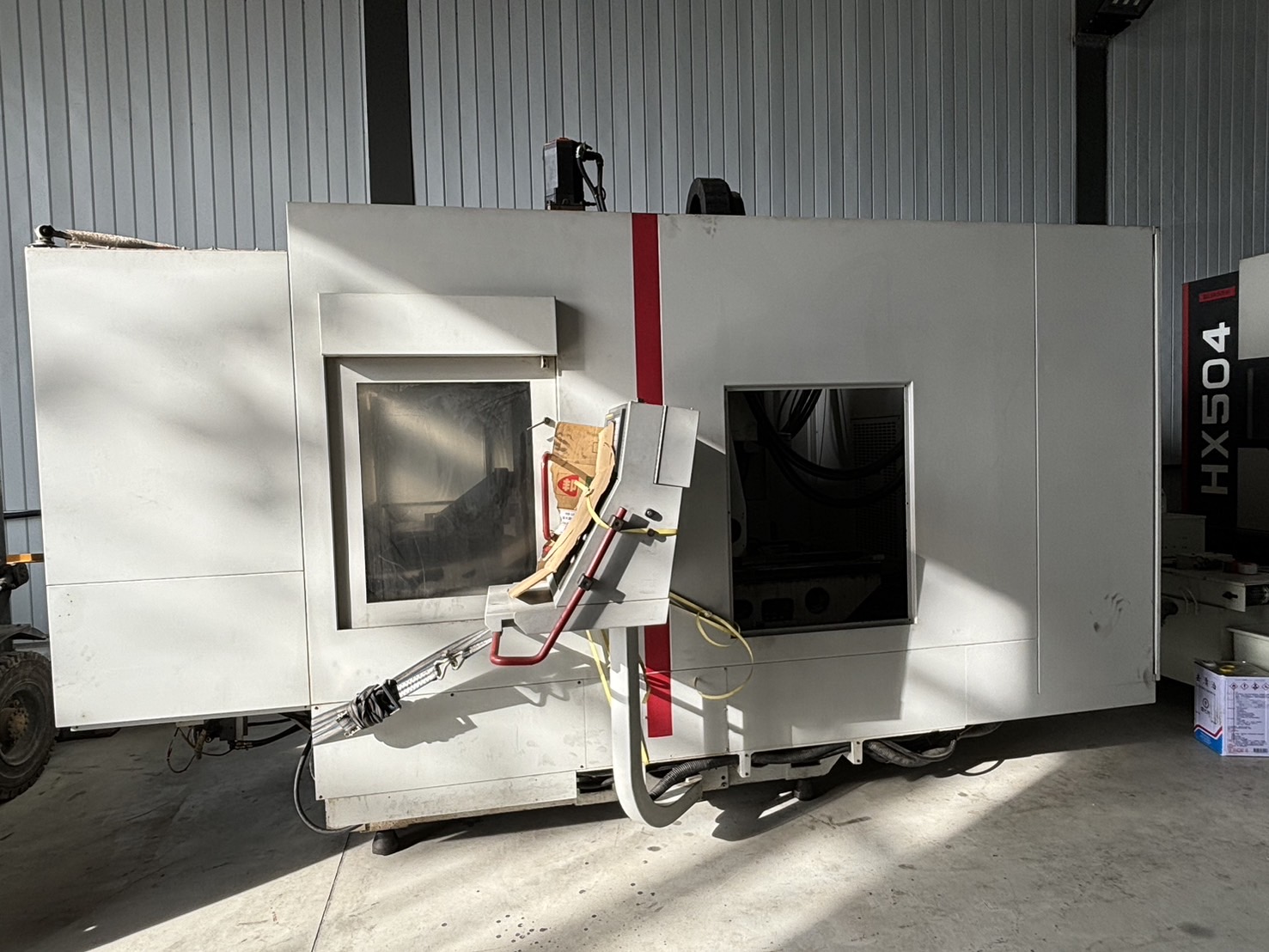

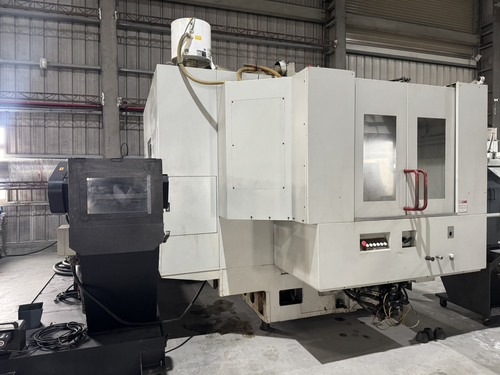

Quaser MX504BE Horizontal Machining Center

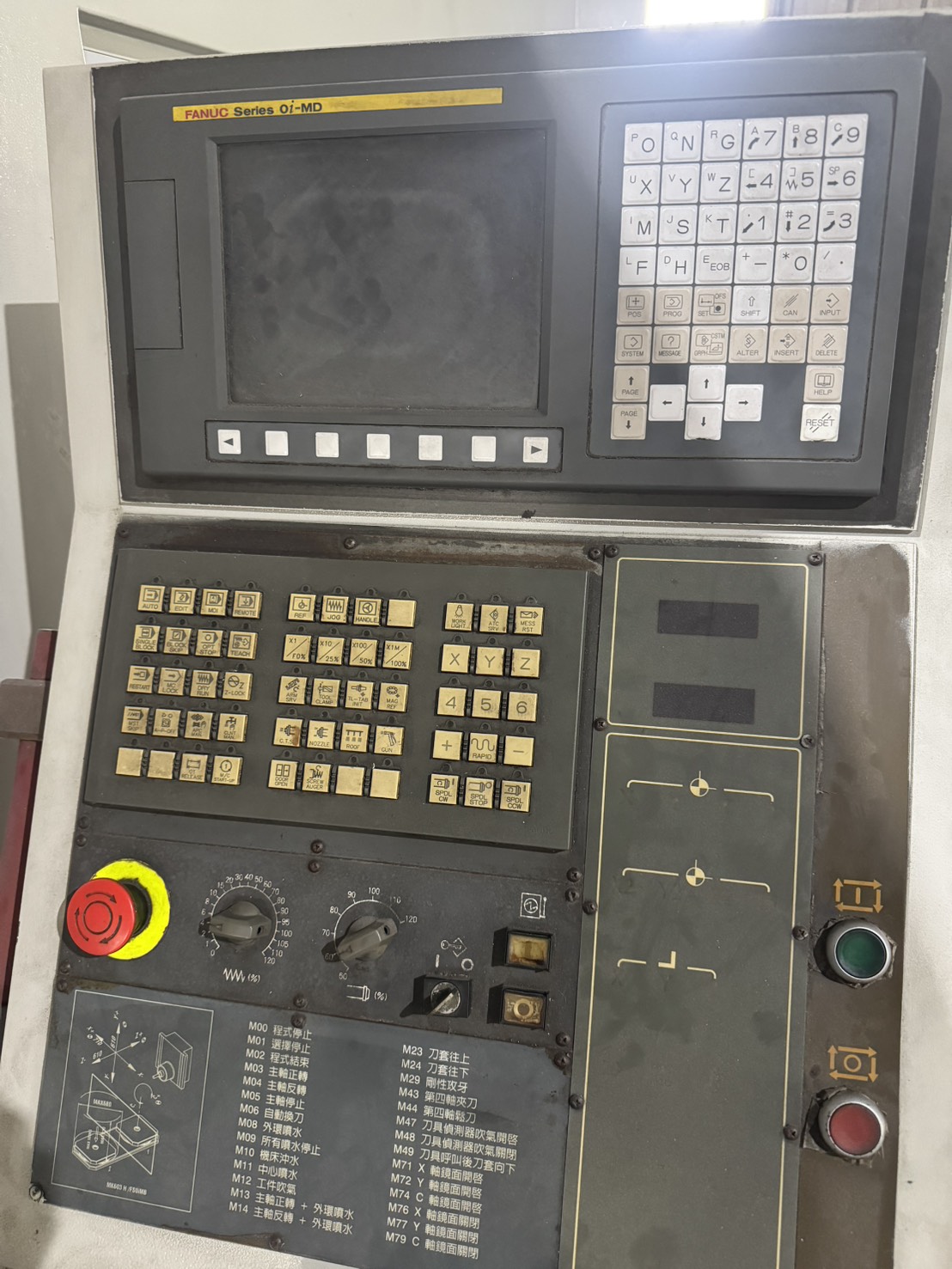

NC Controller : Fanuc 0iMD
XYZ Travel： 762 x 640 x 810 mm
Table Size：500 x 500 mm
Max. Work Size : φ762 x 900 mm; Max. Work Weight : 500 kg
BT40

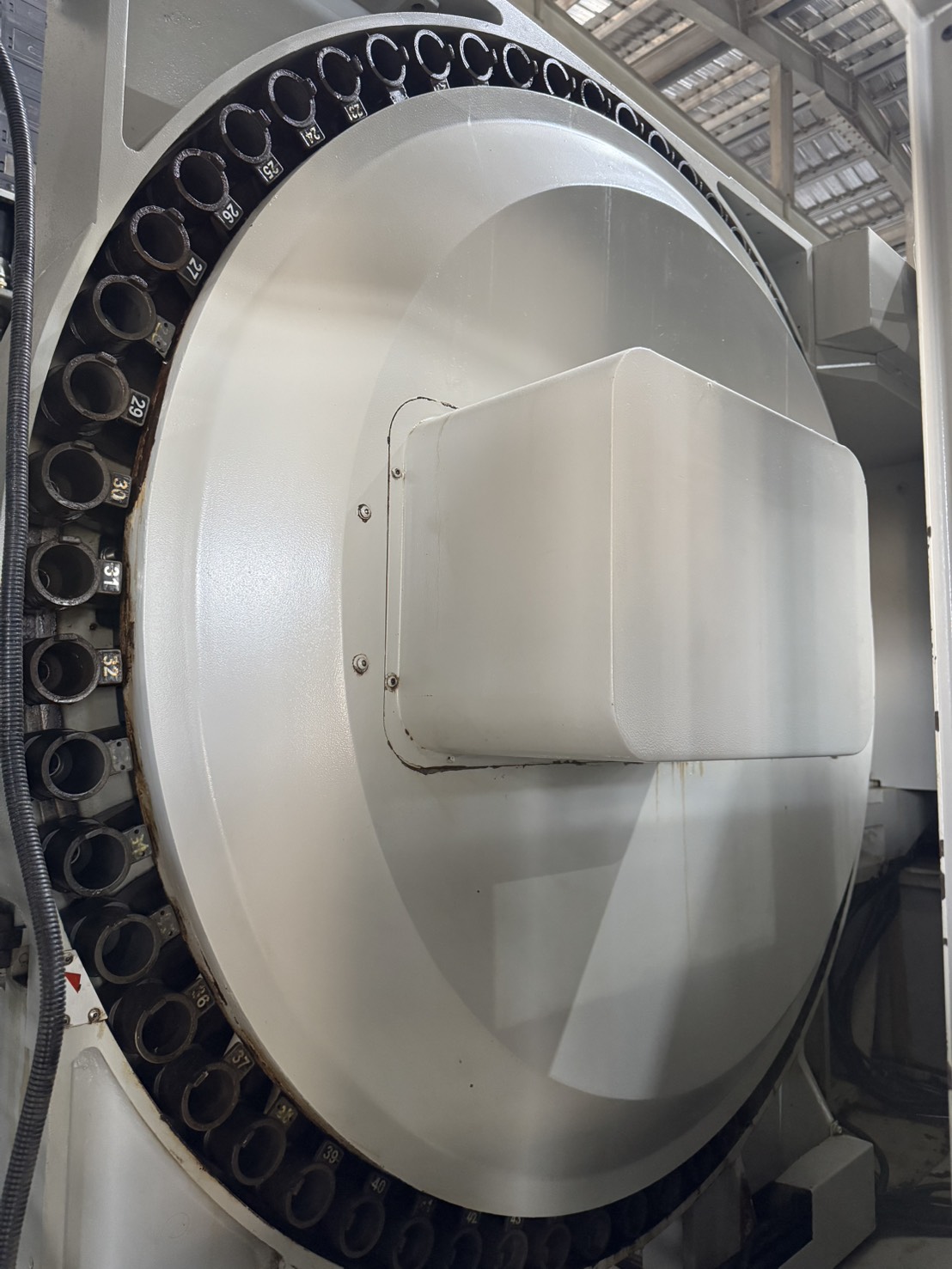

60ATC
12,000rpm Belt Spindle

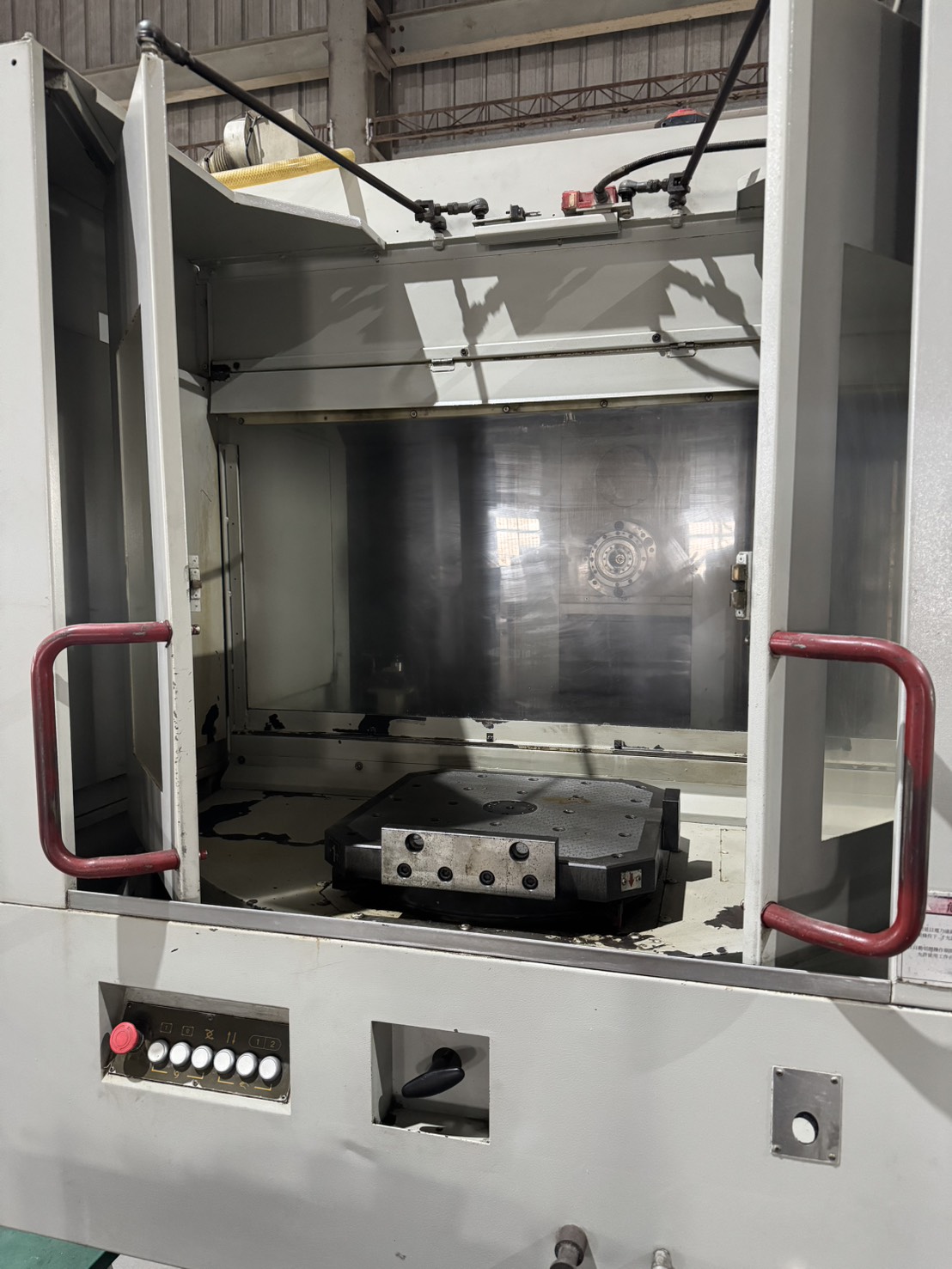

2 Tables (500 x 500 mm)
B-axis 0.001 degree
Ball Screw Cooling System
Center Thur Spindle 20 bar
Auto Tool Measurement
Drum + Scraper Chip Conveyor
Cabinet Air Conditioner
★ Has been repaired and cleaned ★
